Rigging screw, fork/fork, galv. - Wire & rope - Marifix
Rigging screw, fork/fork, galv. in the group Wire, chain, rope / Wire accessories / Rigging screw at  (239)
Rigging screw, fork/fork, galv.
Rigging screw, fork/fork, galv.

Rigging screw, fork/fork, galv.

239
Marifix

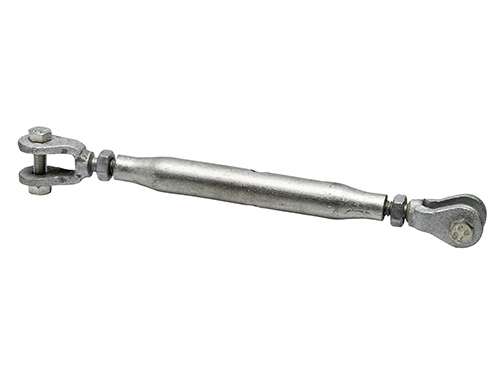

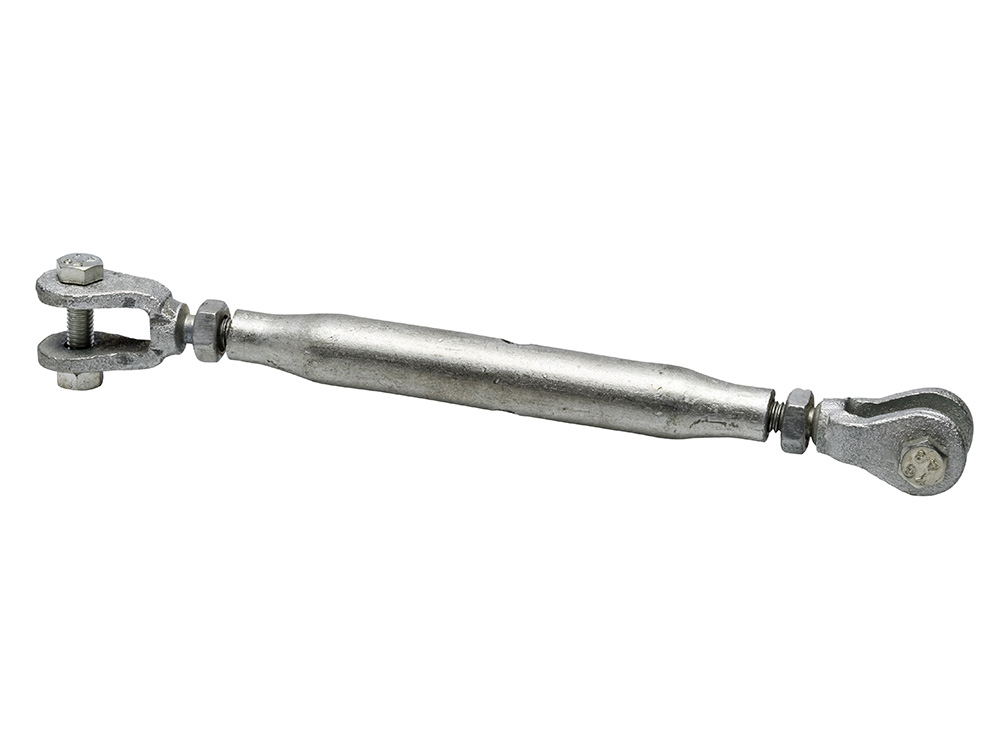

Galvanised rigging screw with fork at both ends. Available in several sizes.

Thread: M10 , M12 , M6 , M8
Breaking load: 1250 kg , 1750 kg , 3500 kg , 5100 kg
Material: Galvanised steel





Qty:

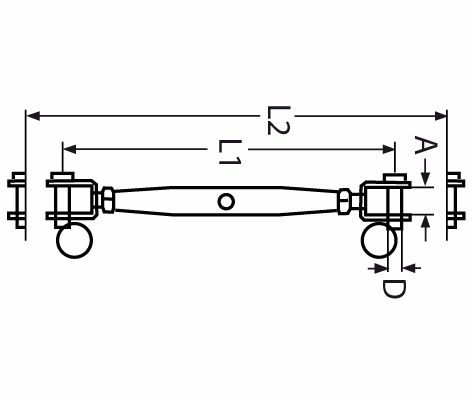

abcd Article no. A D L1-L2 B/L (kg) Price Stock status Quantity
Rigging screw, fork/fork, galv. (6 mm) 131106 6 7.5 6 150-220 1250 €11.55
Purchase View
Rigging screw, fork/fork, galv. (8 mm) 131108 8 11 8 165-240 1750 €14.91
Purchase View
Rigging screw, fork/fork, galv. (10 mm) 131110 10 12 9 190-280 3500 €19.82
Purchase View
Rigging screw, fork/fork, galv. (12 mm) 131112 12 14 12 245-360 5100 €29.55
Purchase View

Click on a product to show details. All measurements in millimetres unless otherwise stated.

Basic fees for products sold by length

One fee per piece, covers the costs for cutting and any included fittings.

Class Excl. VAT Incl.VAT
A €1.92 €2.40
B €10.00 €12.50
C €20.00 €25.00
D €60.00 €75.00
